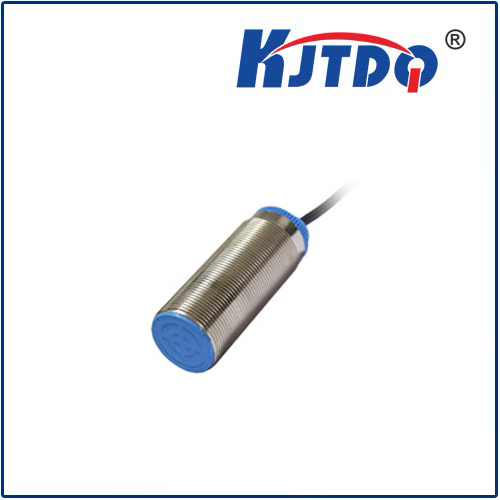

Application

Application

simple evaluation of rotating and linearmovement with regard to underspeed; blocking

Switching function

output is switched during the start-up delay and if (f actual) is greater than (f preset)

Electrical design

DC PNP

Switching output

normally open

Electrical data

Nominal voltage [V]

10...36 DC

Current consumption [mA]

< 15

Reverse polarity protection

yes

Outputs

Transistor

Current rating (continuous) [mA]

250

Current rating (peak) [mA]

250

Voltage drop [V]

< 2.5

Short-circuit proof

yes

Overload protection

yes

Range

Sensing range [mm]

10

Correction factors

mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu

approx. 0.3

Measuring / setting range

Setting range [pulses/min.]

5...300

Adjustment of the switch point

multiturn potentiometer

Hysteresis [% of Sp]

10

Start-up delay [s]

15

Reaction times

Damping frequency (max.) [pulses/min]

15000

Environment

Ambient temperature [°C]

-25...80

Protection

IP 67

Safety classification

MTTF [a]

898

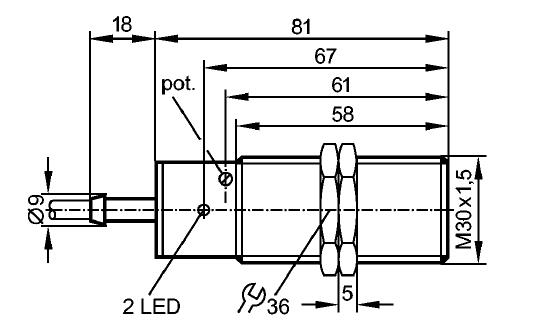

Mechanical data

Mounting

flush mountable

Housing materials

brass special coating; PBT (Pocan)

Weight [kg]

0.276

Displays / operating elements

Input pulses LED

yellow

Output status indication LED

green

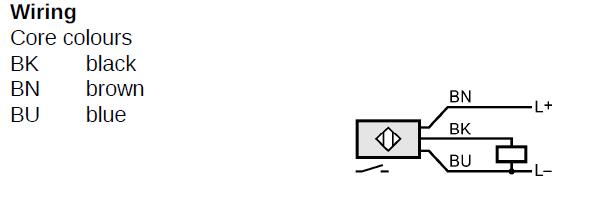

Electrical connection

Connection

PVC cable / 2 m; 3 x 0.5 mm²

Remarks

Pack quantity [piece]

1
